Erosion

Erosion is a variant of one of the two fundamental operations in morphological image processing.

At every pixel location in the image a binary structuring element is used to probe the neighborhood. The result of the erosion at that pixel is the minimum of all neighbors selected with the structuring element.

// Erosion from a source view to a destination view.
template<typename VS, typename VD, typename VK>
void erode(VS source, VD destination, VK kernel);

// Erosion from a source view to a destination view,
// inside a region only.
template<typename VS, typename VD, typename VK>
void erode(VS source, region const& aoi, VD destination,
    VK kernel);

// Erosion from a source view to a destination view.
Morphology.Erode(View source, View dest, View kernel);

// Erosion from a source image to a destination image.
Image destination = source.Erode(View kernel);

// Erosion from a source view to a destination view,
// inside a region only.
Morphology.Erode(View source, Region aoi, View dest, View kernel);

// Erosion from a source image to a destination image,
// inside a region only.
Image destination = source.Erode(View source, Region aoi,
    View kernel);

Here are some examples of the erosion:

Erosion with 3x3 kernel.

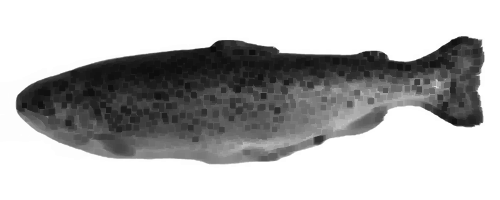

Erosion with 5x5 kernel.

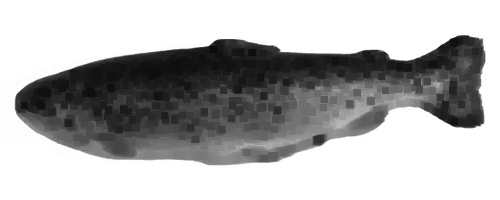

Erosion with 7x7 kernel.

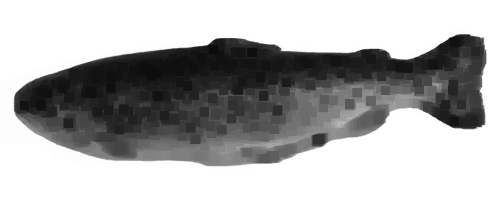

Erosion with 9x9 kernel.

Dilation

Dilation is a variant of one of the two fundamental operations in morphological image processing.

At every pixel location in the image a binary structuring element is used to probe the neighborhood. The result of the dilation at that pixel is the maximum of all neighbors selected with the structuring element.

// Erosion from a source view to a destination view.
template<typename VS, typename VD, typename VK>
void dilate(VS source, VD destination, VK kernel);

// Erosion from a source view to a destination view,
// inside a region only.
template<typename VS, typename VD, typename VK>
void dilate(VS source, region const& aoi, VD destination,
    VK kernel);

// Dilation from a source view to a destination view.
Morphology.Dilate(View source, View dest, View kernel);

// Dilation from a source image to a destination image.
Image destination = source.Dilate(View kernel);

// Dilation from a source view to a destination view,
// inside a region only.
Morphology.Dilate(View source, Region aoi, View dest, View kernel);

// Dilation from a source image to a destination image,
// inside a region only.
Image destination = source.Dilate(View source, Region aoi,
    View kernel);

Here are some examples of the dilation:

Dilation with 3x3 kernel.

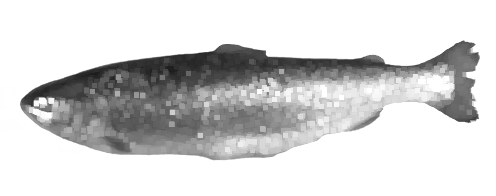

Dilation with 5x5 kernel.

Dilation with 7x7 kernel.

Dilation with 9x9 kernel.
