Point operations are the simplest image processing transformations. An output pixel value depends on the input pixel value only. Examples of such transformations are tone adjustments for brightness and contrast, thresholding, color space transformation, image compositing, image arithmetic or logic, etc.

Mathematically, a point operator can be written as

h(x, y) = g(f(x, y))

or

h = g ∘ f

Various basic algorithms are suitable for point operations within nGI. The most common algorithm is transform() which comes in multiple incarnations: with one, two or three source views.

Writing Point Operations

There are many ways to write and use point functions in nGI. First, point functions can be written in the form of ordinary functions or ordinary template functions. Second, point functions can be written in the form of function objects (i.e. structures or classes that define operator ()). Third, point functions can be written in the form of lambda expressions. Finally, one of the many predefined point functors of nGI can be used.

The following examples are all taken from the point_operations sample.

Point Operations Using Functions

Ordinary C++ functions can be used as point operations with the transform() algorithm. Here is a very simple example of pixel negation:

// ordinary function usable for unary point operation
inline unsigned char negate_mono(unsigned char const& a)
{
    return ~a;
}

and here is the code fragment that you would need to actually perform the operation:

transform(source.view(), destination.view(), negate_mono);

Of course, you can also use binary or ternary functions with the respective versions of the transform algorithm to implement point operations between two or more images.

In addition, you can use template functions to make them more generic and independent of the respective data type.

// template function usable for unary point operation
template<typename T>
inline T negate(T const& a)
{
    return ~a;
}

When you use a template function, you must specify the type to the point function:

transform(source.get_view(), destination.get_view(), negate<ungsigned char>);

Point Operations Using Function Objects

C++ function objects provide more power than ordinary functions, and can be used equally well as point operations with the transform algorithm. Here is the same simple example of pixel negation as above, but written with a function object:

// function object usable for unary point operations
struct negate {
  unsigned char operator()(unsigned char const& a) {
    return ~a;
  }
};

...

transform(source.get_view(), destination.get_view(), negate());

Of course, you can also use binary or ternary function objects with the respective versions of the transform algorithm to implement point operations between two or more images.

In addition, you can use template function objects to make them more generic and independent of the respective data type.

Point Operations Using Lambda Functions

Lambda function objects provide even more convenience, since they avoid the manual creation of functions or function objects altogether. Instead, special lambda expression syntax is used to write the function on-the-fly. Here is the same simple example of pixel negation as above, but written with a lambda expression:

transform(source.get_view(),destination.get_view(), ~_1);

Of course, you can also use binary or ternary lambda expressions with the respective versions of the transform algorithm to implement point operations between two or more images.

Classification of Point Operations

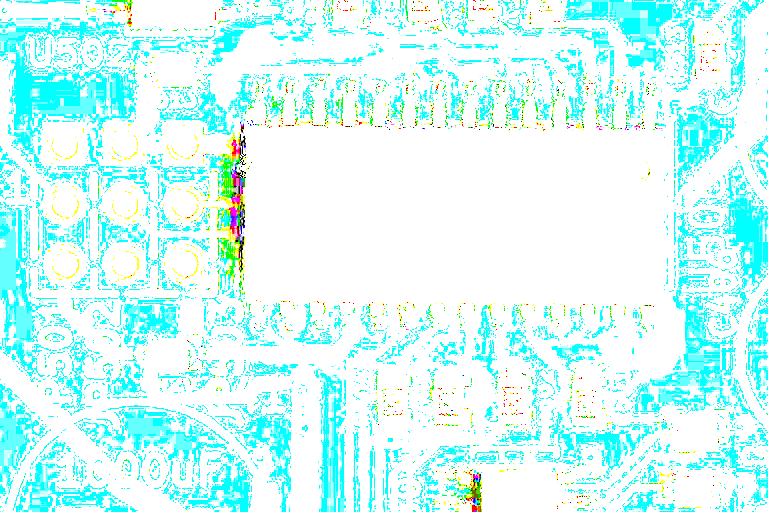

There are various ways to classify point operations. One way to classify them is by the number of arguments. Unary point operations take one argument, binary point operations take two arguments and tertiary point arguments take three arguments. Another way is to separate them into arithmetic, logical, and other operations. The table shows this classification for the operations implemented within nGI.

	arithmetic	logic	other
unary	negate, absolute, increment, decrement	not	color space transformation

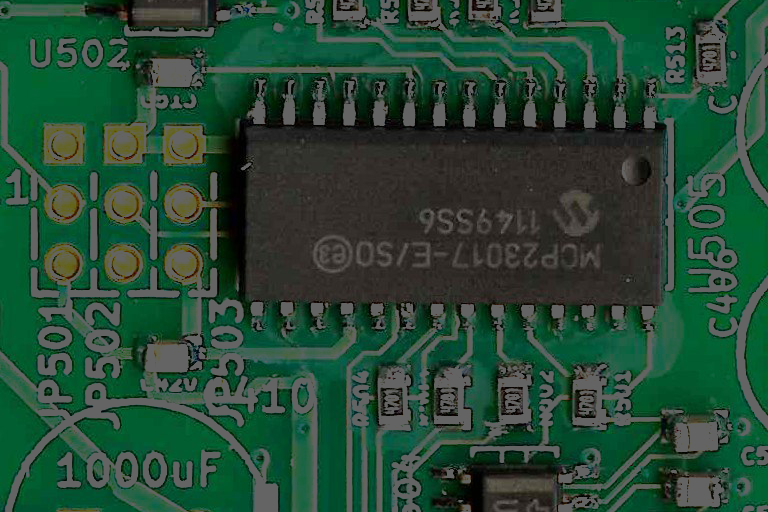

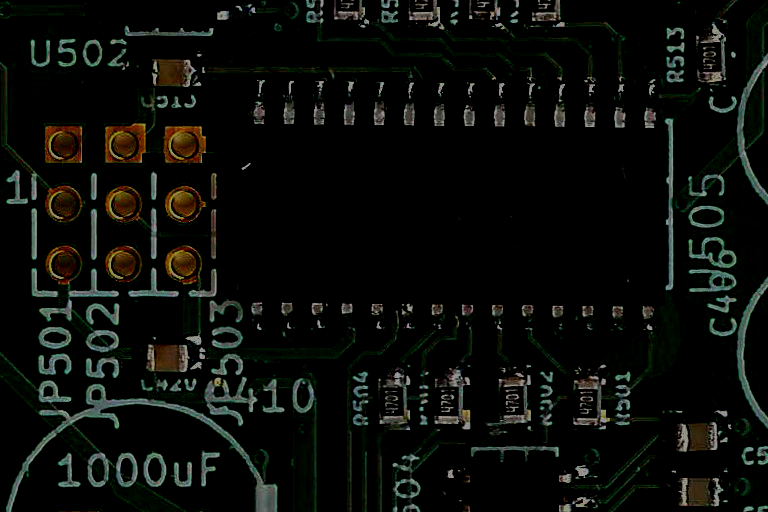

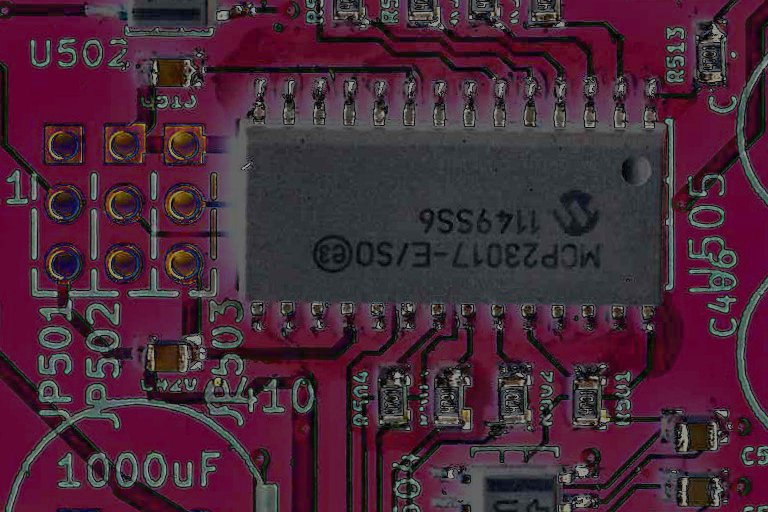

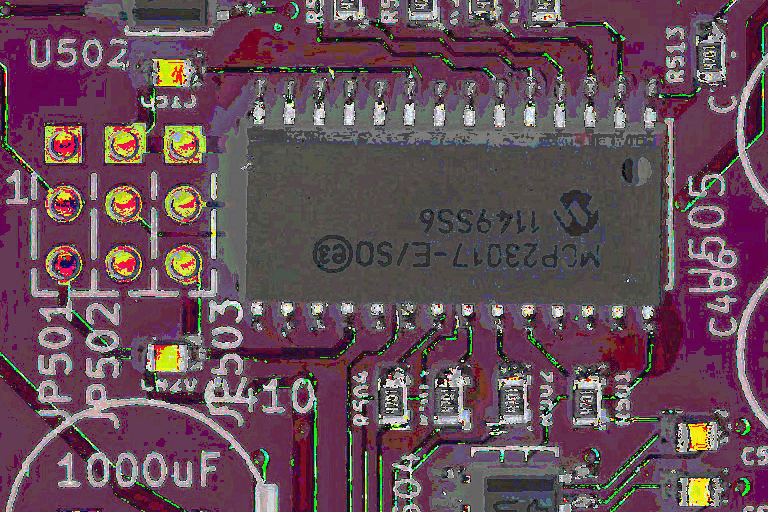

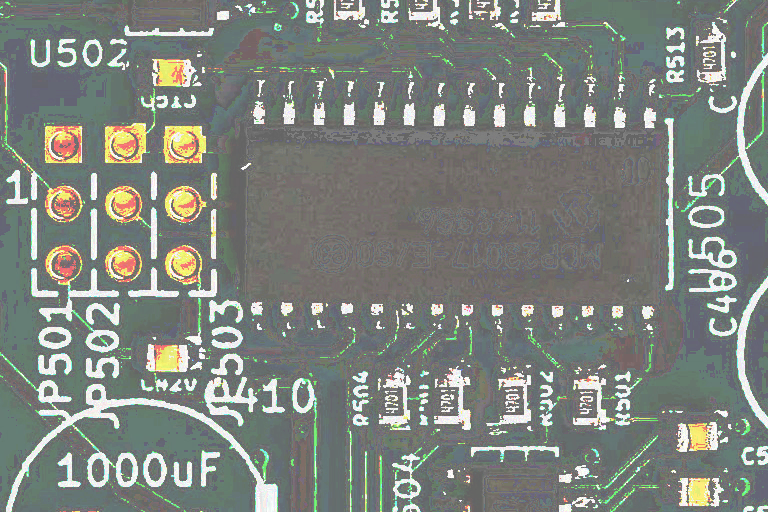

binary	add, difference, subtract	and, or, xor	maximum, minimum, compare_bigger, compare_bigger_or_equal, compare_equal, compare_smaller, compare_smaller_or_equal, compositing,
tertiary			compositing

The code samples in this chapter use the following input images:

The first source image, a printed circuit board.

The second source image, a color gradient
image.

The third source image, another color gradient
image.

absolute

Absolute takes the absolute value of its arguments.

f(x) = |x|

It is defined for signed types only. You can use the function absolute() or the function object pt_absolute_1, but note that the former may be optimized for performance.

absolute(source.get_view(), destination.get_view());

add

Add adds its arguments. The version implemented here avoids overflow and saturates (i.e. for 8 bits: sum > 255 will be saturated to 255).

$$f(x,y)= \{ \begin{matrix} x+y & \mid & x+y \< max \\ max & \mid & x+y \geqslant max \end{matrix}$$

You can use the function add() or the function object pt_add_2, but note that the former may be optimized for performance.

add(source1.get_view(), source2.get_view(), destination.get_view());

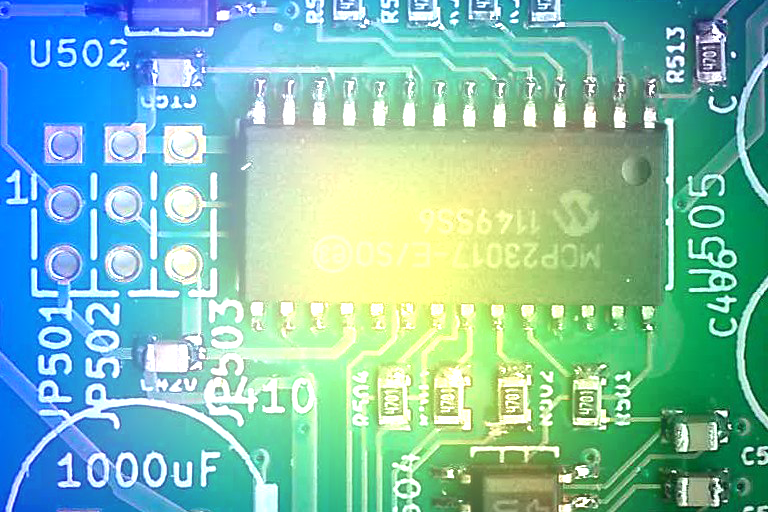

Sum of the printed circuit board image and the color gradient
image.

The function add() is overloaded and allows you to add a constant value (y is constant) to a view.

add(source.get_view(), 100, destination.get_view());

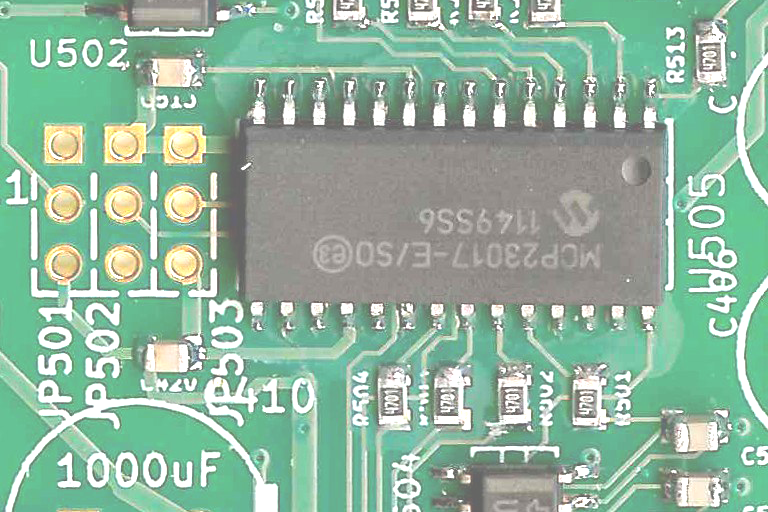

Sum of the printed circuit board image and the constant
100.

and

And logically bitwise ANDs its arguments.

f(x, y) = x ∧ y

You can use the function and() or the function object pt_and_2, but note that the former may be optimized for performance.

and(source1.get_view(), source2.get_view(), destination.get_view());

Bitwise logical and of the printed circuit board image and the color
gradient image.

The function and() is overloaded and allows you to AND another image view or a constant value (y is constant) with a view.

and(source.get_view(), 100, destination.get_view());

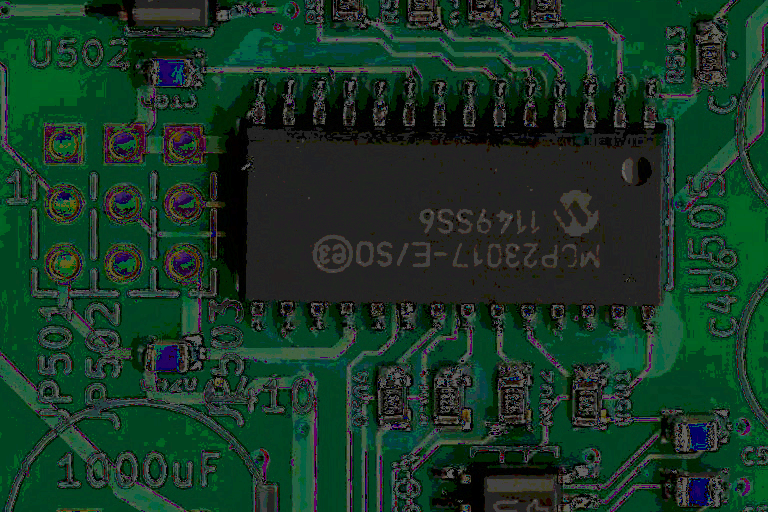

Bitwise logical and of the printed circuit board image and the
constant 100.

blend

Blend blends its arguments.

f(x, y, α) = x ⋅ (1 − α) + y ⋅ α

You can use the function blend() or the function object pt_blend_3, but note that the former may be optimized for performance.

blend(source1.get_view(), source2.get_view(), alpha.get_view(), destination.get_view());

Blend the printed circuit board image and the color gradient image
using the second color gradient image as the blend
factor.

The function blend() is overloaded and allows you to blend a view with a constant value (y is constant).

blend(source.get_view(), 100, alpha.get_view(), destination.get_view());

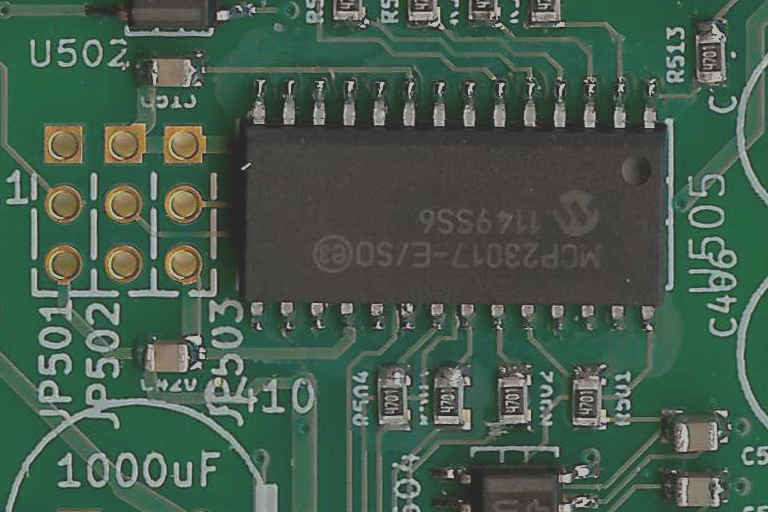

Blend the printed circuit board image and the constant 100 using the
second color gradient image as the blend
factor.

Another overload of blend() allows you to blend two views with a constant blend factor (α is constant).

blend_constant(source.get_view(), source2.get_view(), 100, destination.get_view());

Blend the printed circuit board image and the color gradient image
using a constant blend factor of 100.

Another overload of blend() allows you to blend a view and a constant with a constant blend factor (x and α are constant).

blend_constant(source.get_view(), 100, 100, destination.get_view());

Blend the printed circuit board image and the constant 100 using the
second color gradient image as the blend
factor.

compare_bigger

Compare bigger compares its arguments.

$$f(x)= \{ \begin{matrix} max & \mid & x > y\\ min & \mid & x \leqslant y \end{matrix}$$

You can use the function compare_bigger() or the function object pt_compare_bigger_2, but note that the former may be optimized for performance.

compare_bigger(source1.get_view(), source2.get_view(), destination.get_view());

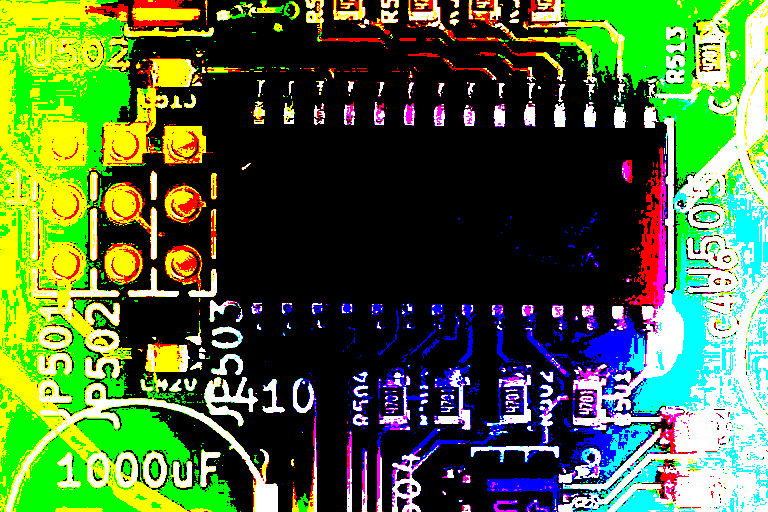

Comparison (bigger) of the printed circuit board image and the color
gradient image.

The function compare_bigger() is overloaded and allows you to compare a constant value (y is constant) and a view.

compare_bigger(source.get_view(), 100, destination.get_view());

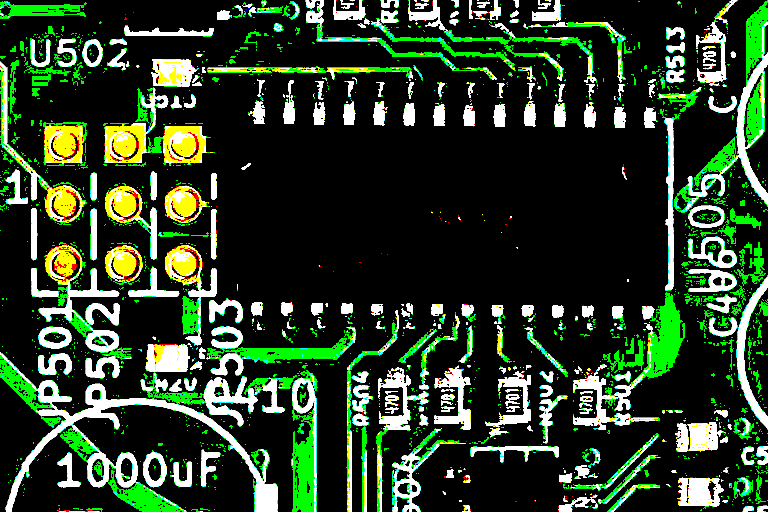

Comparison (bigger) of the printed circuit board image and the
constant 100.

compare_bigger_or_equal

Compare bigger_or_equal compares its arguments.

$$f(x)= \{ \begin{matrix} max & \mid & x \geqslant y\\ min & \mid & x \< y \end{matrix}$$

You can use the function compare_bigger_or_equal() or the function object pt_compare_bigger_or_equal_2, but note that the former may be optimized for performance.

compare_bigger_or_equal(source1.get_view(), source2.get_view(), destination.get_view());

Comparison (bigger or eqal) of the printed circuit board image and the
color gradient image.

The function compare_bigger_or_equal() is overloaded and allows you to compare a constant value (y is constant) and a view.

compare_bigger_or_eqal(source.get_view(), 100, destination.get_view());

Comparison (bigger or equal) of the printed circuit board image and
the constant 100.

compare_equal

Compare equal compares its arguments.

$$f(x)= \{ \begin{matrix} max & \mid & x = y\\ min & \mid & x \neq y \end{matrix}$$

You can use the function compare_equal() or the function object pt_compare_equal_2, but note that the former may be optimized for performance.

compare_equal(source1.get_view(), source2.get_view(), destination.get_view());

Comparison (eqal) of the printed circuit board image and the color
gradient image.

The function compare_equal() is overloaded and allows you to compare a constant value (y is constant) and a view.

compare_eqal(source.get_view(), 100, destination.get_view());

Comparison (equal) of the printed circuit board image and the constant
100.

compare_smaller

Compare smaller compares its arguments.

$$f(x)= \{ \begin{matrix} max & \mid & x \< y\\ min & \mid & x \geqslant y \end{matrix}$$

You can use the function compare_smaller() or the function object pt_compare_smaller_2, but note that the former may be optimized for performance.

compare_smaller(source1.get_view(), source2.get_view(), destination.get_view());

Comparison (smaller) of the printed circuit board image and the color
gradient image.

The function compare_smaller() is overloaded and allows you to compare a constant value (y is constant) and a view.

compare_eqal(source.get_view(), 100, destination.get_view());

Comparison (smaller) of the printed circuit board image and the
constant 100.

compare_smaller_or_equal

Compare smaller_or_equal compares its arguments.

$$f(x)= \{ \begin{matrix} max & \mid & x \leqslant y\\ min & \mid & x > y \end{matrix}$$

You can use the function compare_smaller_or_equal() or the function object pt_compare_smaller_or_equal_2, but note that the former may be optimized for performance.

compare_smaller_or_equal(source1.get_view(), source2.get_view(), destination.get_view());

Comparison (smaller or eqal) of the printed circuit board image and
the color gradient image.

The function compare_smaller_or_equal() is overloaded and allows you to compare a constant value (y is constant) and a view.

compare_eqal(source.get_view(), 100, destination.get_view());

Comparison (smaller or eqal) of the printed circuit board image and
the constant 100.

compositing

Compositing is about composing a new image from two or more other images. The foundations of that have been laid down by Thomas Porter and Tom Duff in 1984 while working at Lucasfilm Ltd. Despite the age it is still worthwhile to read their original paper (http://keithp.com/~keithp/porterduff/p253-porter.pdf).

The following chapters show the results of compositing operations defined by the original Porter/Duff paper, as well as the code used to create them.
